Description

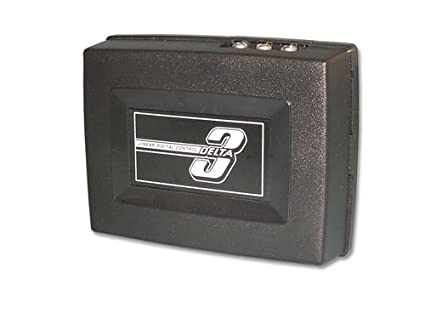

This Linear DR / DR3A / DNR00001 is a single channel 310 MHz radio frequency replacement garage door radio receiver. This unit is perfect for an application where you may have an older garage door opener that needs a new radio receiver. Installation is simple you can either mount the unit directly on to the opener if your old opener has 3 screw terminals on the back of it. Then set the 8 on/off dip swtiches on the remote control(s) and your ready to go.

Please note: If your opener has 2 or 4 terminals you will want to add the 3 Tab to 2 Terminal Adapter to Our representative will contact you with more information. as in many cases the unit will not work without it in these applications.

The DR3A is compatible with the following Linear Delta 3 type radio remotes: DT, DT-1, DTC, DTD, DTA, DT-2A, and Mini-T.

Product Features:
-Activates one devices
-Wire lead antenna
-24 Volt model
-Mounting bracket supplied
-Power: 24 Vac/Vdc
-Frequency: 310 MHz
-Codes: 128 (set by dip switches)
-Dimensions: 5.5 x 1.25 x 4 inches
-One year manufacturers warranty
